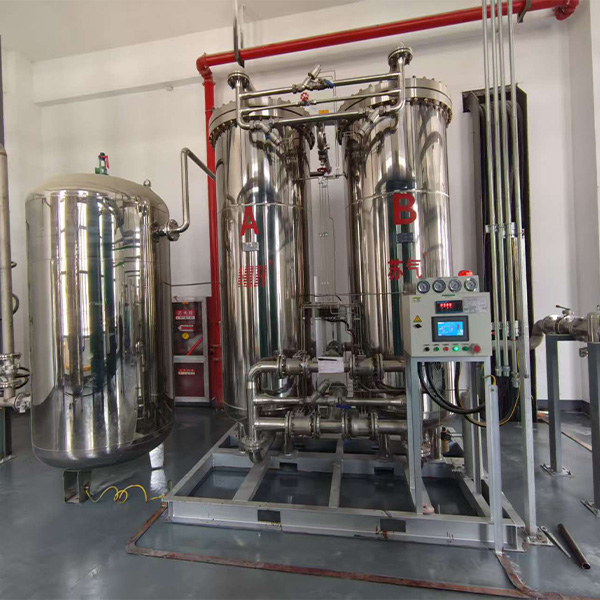

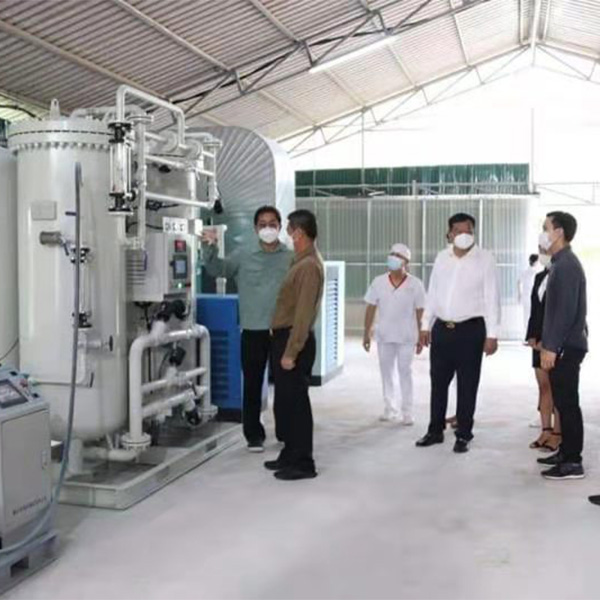

Medical Oxygen Generator

20 Cubic TYFO93-20 Containerized Oxygen Generator with Tank filling System (Purity is 93 ± 3%) Configuration

Air compressor

Air Compressor: TAIWAN HANBELL Permanent magnet frequency conversion VSD air compressor AA6-37A-0.8 Air Output:6.8m3/min, 8bar 37kW 380V50Hz 3Phase. With Air cooling system

Air filter & Oxygen filter

air filter HBF-24FC-1 remove 99% water Flow rate: 10.7m3/min

air filter HBF-24FC-2, 1um,0.6ppm grade

air filter HBF-24FC-3, 0.01um,0.0lppm grade 10m3/min

air filter HBH-10 Carbon Activated air filter, 10m3/min

02 filter HBF-24FC-4, 0.01μm,0.01ppm grade 6m3/min

Sterilization filter g1050, 0.01um grade 10m3/min G1/2"

Refrigeration Dryer

Refrigeration dryer:HB0080 8.8m3/min, 2HP 220V 50Hz 3PhaseAir Cooling; Max Inlet temperature: 80'C

Adsorption dryer tower

Adsorption dryer tower:2 piece, TYFO93-20 (1 set) desiccant , Dew point:-56~-62.5 C

Oxygen generator

Taiyang patent integraed valve Electronic drain valve

Oxygen flowmeter: 20Nm3/H, purity is 93+-3%

Oxygen analyzer: Chang Ai , oxygen analyzer:Cl-6600:+2%FS

Pressure dew point meter: Chang Ai Cl series

Molecular sieve: Taiyang molecular sieve; the service life of oxygen molecular sieve is more than 5-8 years

PLC system: Siemens plc control system S2-700

Alarm system: Alarm system: pressure, purity, temperature etc

Online monitoring system.

Touch screen: Taiyang 7" touch screen, real-time data display and historical date, one button start&stop

Gas Tank

Shanghai Shenjiang Pressure Vessel CO.,LTD. Air storage tank: 0.3m3, with safety valve, drain valve,pressure guage; (including certificates and accessories), pressure 0.8Mpa;

Dry compressed air tank, (including certificates and accessories), pressure 0.8Mpa;

Oxygen surge tank

Shanghai Shenjiang Pressure Vessel CO.,LTD. g Oxygen storage tank:0.3m3, with safety valve, pressure guage; (including certificates and accessories), pressure 0.8Mpa;

Cylinder filling system 20/3-150 xygen compressor: 20m3/h, 150bar,oil-free, 3-stage compress,Air cooling, 11Kwcylinder filling ramp,with pressure guage,150Bar, safety valve,5+5 hose.20ft Container package

Container package, including lighting, emergency light, insulation layer, air flow duct, 1.5HP AC.

distribution cabinet, fan, manintenance door.
